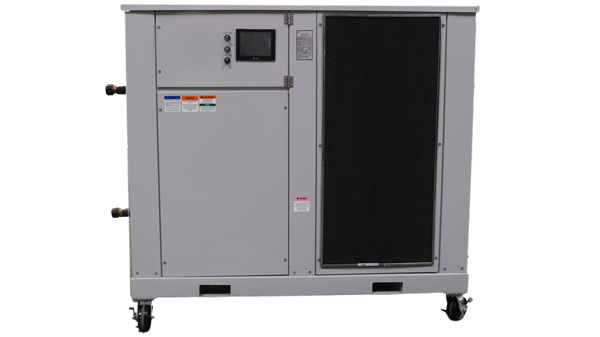

15 HP Industrial Air-Cooled Recirculating Chiller, 3-Phase

Delivery time: 2-4 weeks

$46,506.00 USD Excl. tax
$46,506.00 USD Incl. tax
Article code CHI015AC-3P
EAN
Information

Features

  • PLC controlled with self-diagnostics, WIFI/LAN/LTE connectivity for predictive maintenance
  • Copeland Scroll
  • Stainless Steel/Copper Braze Plate
  • External Brass Service Valves
  • Large Copper Condensing Coil with Aluminum Fins or Micro Channel
  • Powder Coated, Heavy Gauge, Steel Cabinet
  • Rugged Stainless Steel Centrifugal Pumps
  • Oversized Magnetic Contactors



Benefits

  • Long Life - Dependable - Economical to Operate
  • Compact Efficiency
  • Easy Maintenance and Repair
  • Rugged Protection while allowing for easy maintenance and wash down
  • High Flow - Long Life - Dependable
  • Rugged Dependability - Long Life
  • Lifetime Warranty



*50 HZ Units Available

**Standard pump listed-optional selections available

12,000 BTU/Hr = 1 Ton of cooling capacity





STANDARD FEATURES:



  • Controls: Electronic programmed temperature controller with constant (set point & process) temperature readout.
  • Refrigeration Components: Efficient scroll compressors, sight glass/moisture indicators, balanced port expansion valves, filter drier, pump down valves, fan cycling head pressure controls.
  • Process Fluid Components: Bronze “Y” strainer with 20 mesh stainless steel screen. Pumps are stainless steel centrifugal. Tanks are insulated with shoe box lid, fill port, and level sight glass. Portable systems will include a bypass flow valve.
  • Safety Controls: High and low refrigerant pressure, high and low fluid temperature, freeze, low water flow, overloads for compressor and fan motors, safety fuses or overloads for pump.
  • Construction: Welded steel powder coated frame and full metal cabinet, copper piping connections.
  • Warranty: One year parts / five year compressor.



Standard Chiller Design Includes:

  • Ambient Outdoor Operating Conditions: 0F to 115F
  • Standard Leaving Fluid Temperatures: 20F to 70F
  • UL Rated 2 Ton through 20 Ton



Model

Capacity- 50F LCWT/95F Amb

Voltage*

Pump HP** and Flow Rate

Connections

2 HP

24,000 BTU/HR

208/230/1/60

1 HP 30gmp@30 psi

1” MNPT

IN/OUT

3 HP

36,000 BTU/HR

208/230/1/60

208/230/3/60

460/3/60

575/3/60

1 HP 30gmp@30 psi

1” MNPT

IN/OUT

5 HP

60,000 BTU/HR

208/230/1/60

208/230/3/60

460/3/60

575/3/60

1 HP 30gmp@30 psi

1 ¼" MNPT

IN/OUT

7.5 HP

90,000 BTU/HR

208/230/3/60

460/3/60

575/3/60

1 ½ HP 55gpm@30psi

1 ¼" MNPT

IN/OUT

10 HP

120,000 BTU/HR

208/230/3/60

460/3/60

575/3/60

1 ½ HP 55gpm@30psi

1 ¼" MNPT

IN/OUT

12.5 HP

150,000 BTU/HR

208/230/3/60

460/3/60

575/3/60

2 HP 76gpm@30psi

2” MNPT

IN/OUT

15 HP

180,000 BTU/HR

208/230/3/60

460/3/60

575/3/60

2 HP 76gpm@30psi

2” MNPT

IN/OUT

20 HP

240,000 BTU/HR

208/230/3/60

460/3/60

575/3/60

3 HP 95gpm@30psi

2” MNPT

IN/OUT
