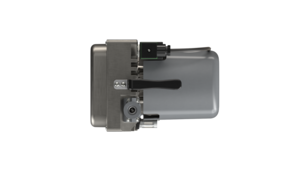

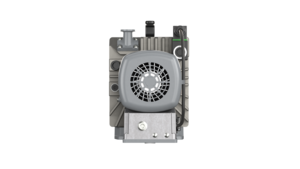

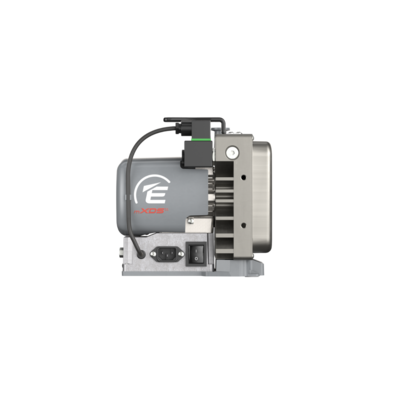

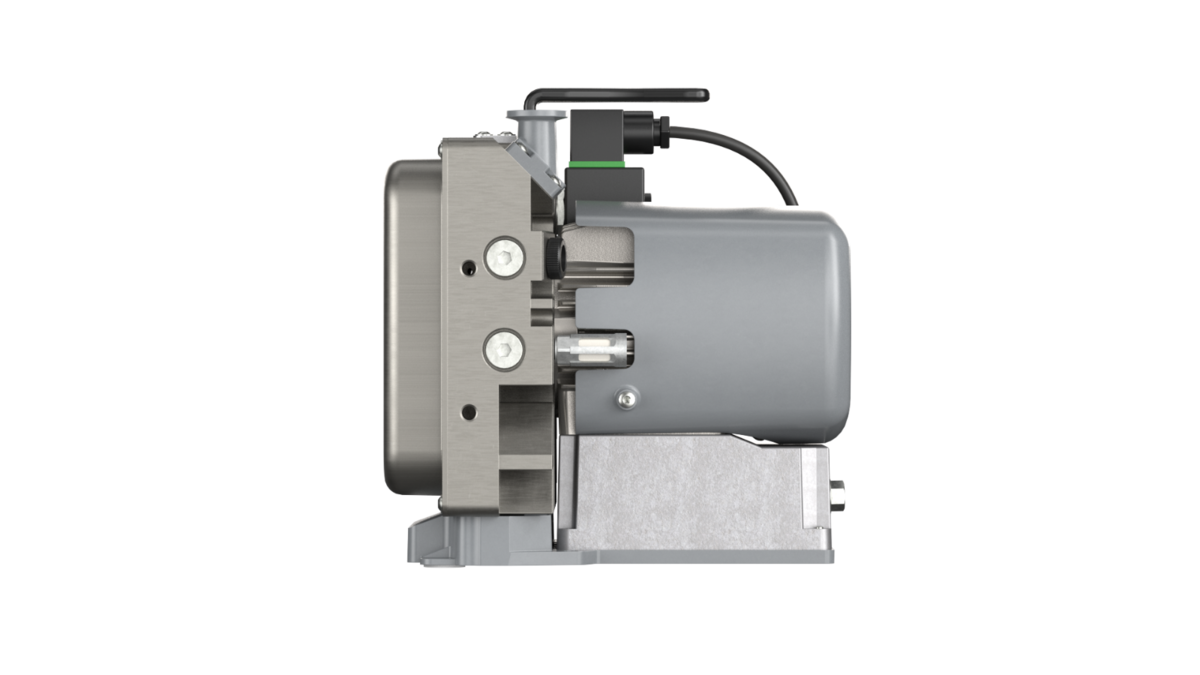

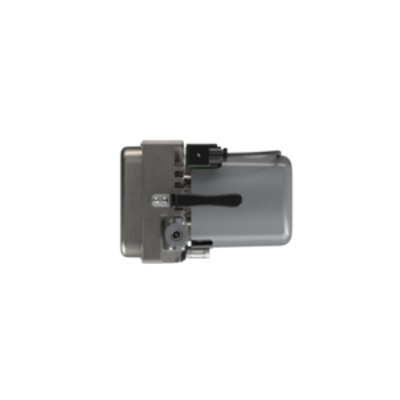

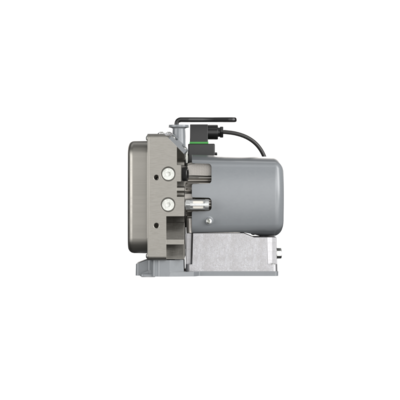

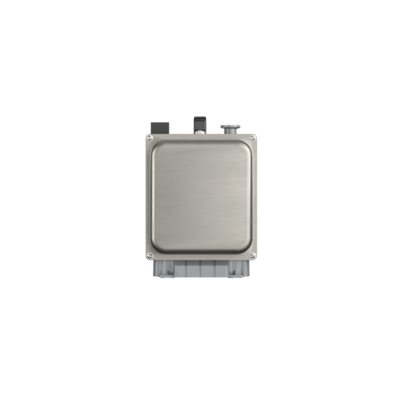

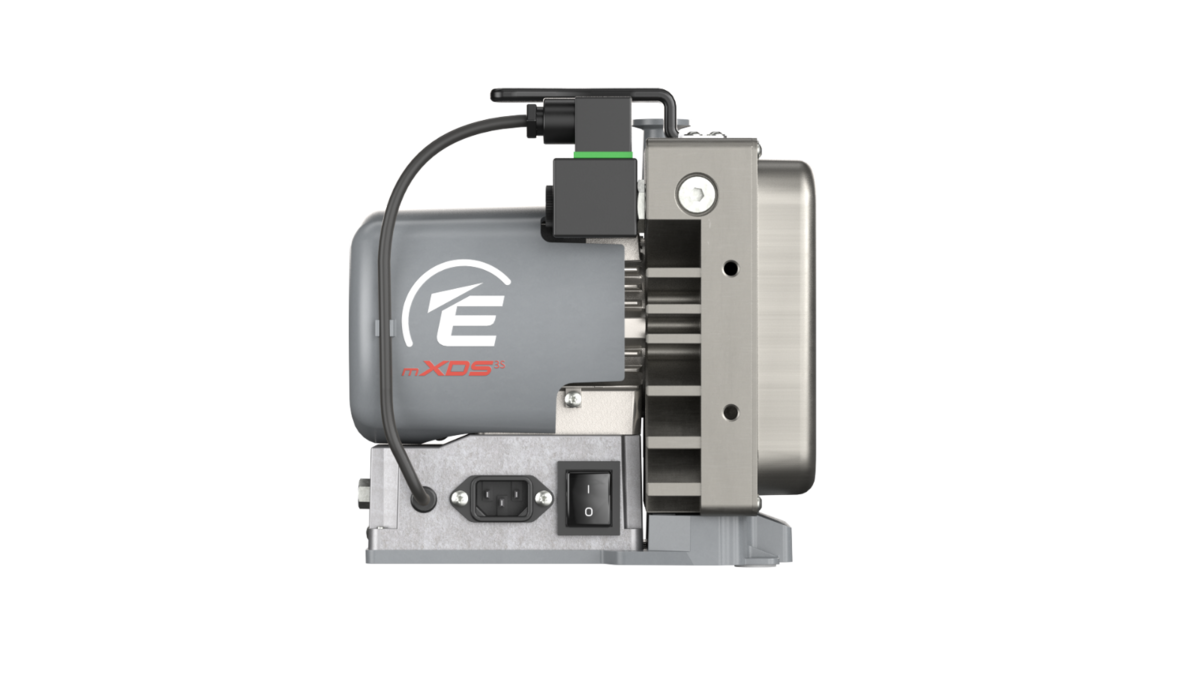

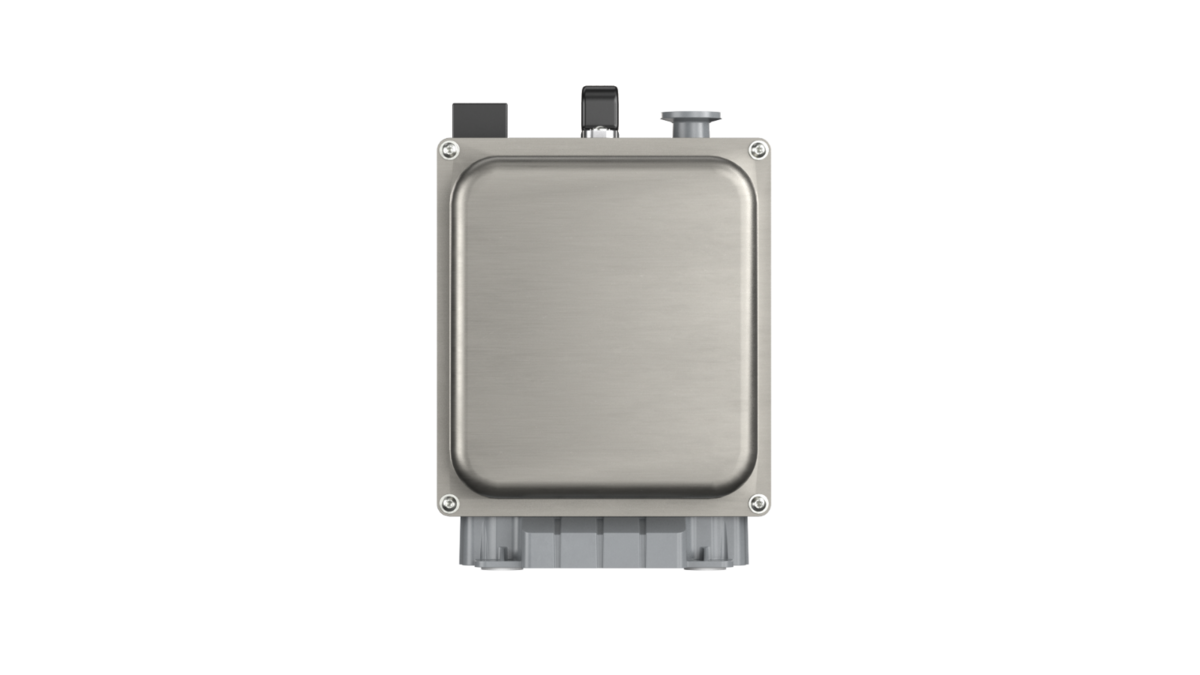

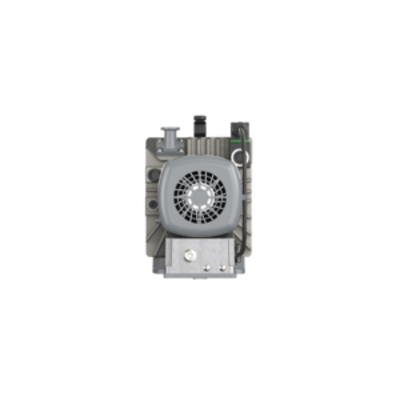

Edwards mXDS3s and mXDS3 Dry Scroll Vacuum Pump, 115V 60Hz

Compact Dry Scroll Vacuum Pump

Reliable, Oil-Free Performance in a Portable Design

The Compact Dry Scroll Vacuum Pump delivers a maximum pumping speed of 2.0 CFM (3.3 m³/h) and reaches an ultimate pressure of 75 mTorr, making it an excellent choice for backing turbomolecular pumps and other vacuum applications requiring clean, dry operation.

Key Features

• Oil-Free Technology
  No oil to replace, dispose of, or contaminate your system—ideal for clean environments.

• Compact & Lightweight
  Weighs just 17.2 lbs (7.8 kg) with a built-in carrying handle for easy transport and installation.

• Flexible Mounting Options
  Can be mounted horizontally or vertically. Inlet orientation is adjustable with optional accessories.

• Quiet Operation
  Optimized fan cooling and optional exhaust silencer help reduce noise for a more comfortable workspace.

• Energy Efficient
  Lower power consumption compared to similar capacity pumps—great for reducing operating costs and environmental impact.

• Water Vapor Handling
  Integrated gas ballast allows for effective vapor management, enhancing pump durability.

Model Options

• Standard Version
  Supplied without an inlet valve—ideal for systems with external flow control.

• Enhanced Version
  Includes a factory-installed inlet isolation valve with delayed opening and an exhaust silencer for added protection and quieter operation.

What Is an Inlet Isolation Valve—and Why Does It Matter?

An inlet isolation valve is a built-in feature that controls when gases are allowed to enter the pump. In models with delayed opening, the valve stays closed during startup and only opens once the pump is fully operational. This helps:

• Prevent sudden air rushes that can stress internal components
• Maintain vacuum levels when the pump is off
• Reduce noise and vibration during startup
• Protect the system from backstreaming or contamination
• Extend the pump’s lifespan by minimizing wear

It’s a small feature that makes a big difference in performance, reliability, and system safety.

Applications

• Backing turbomolecular pumps
• Laboratory vacuum systems
• Analytical instruments
• Cleanroom environments
• OEM system integration

Need Help Choosing Accessories?

A wide range of accessories is available to customize the pump to your specific setup. Contact us for configuration support or browse compatible components.
