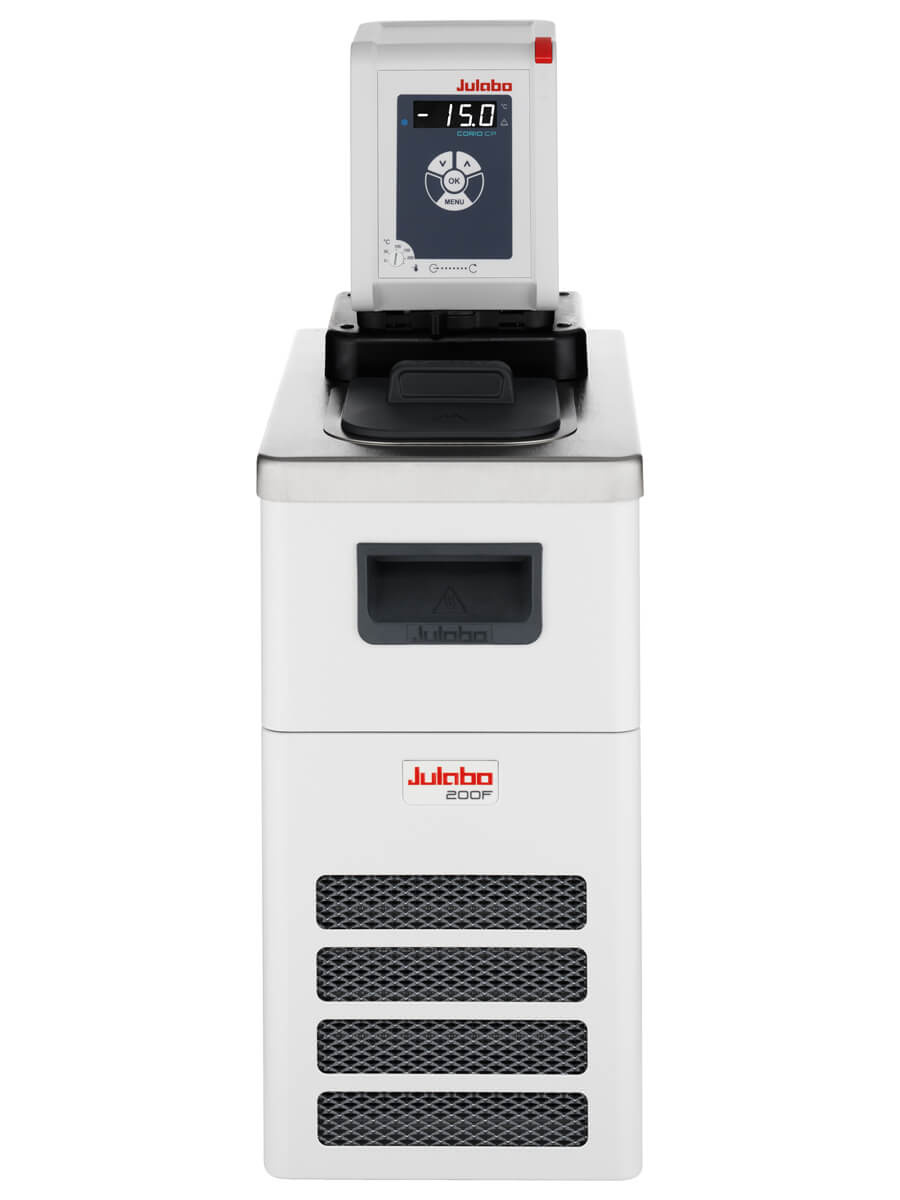

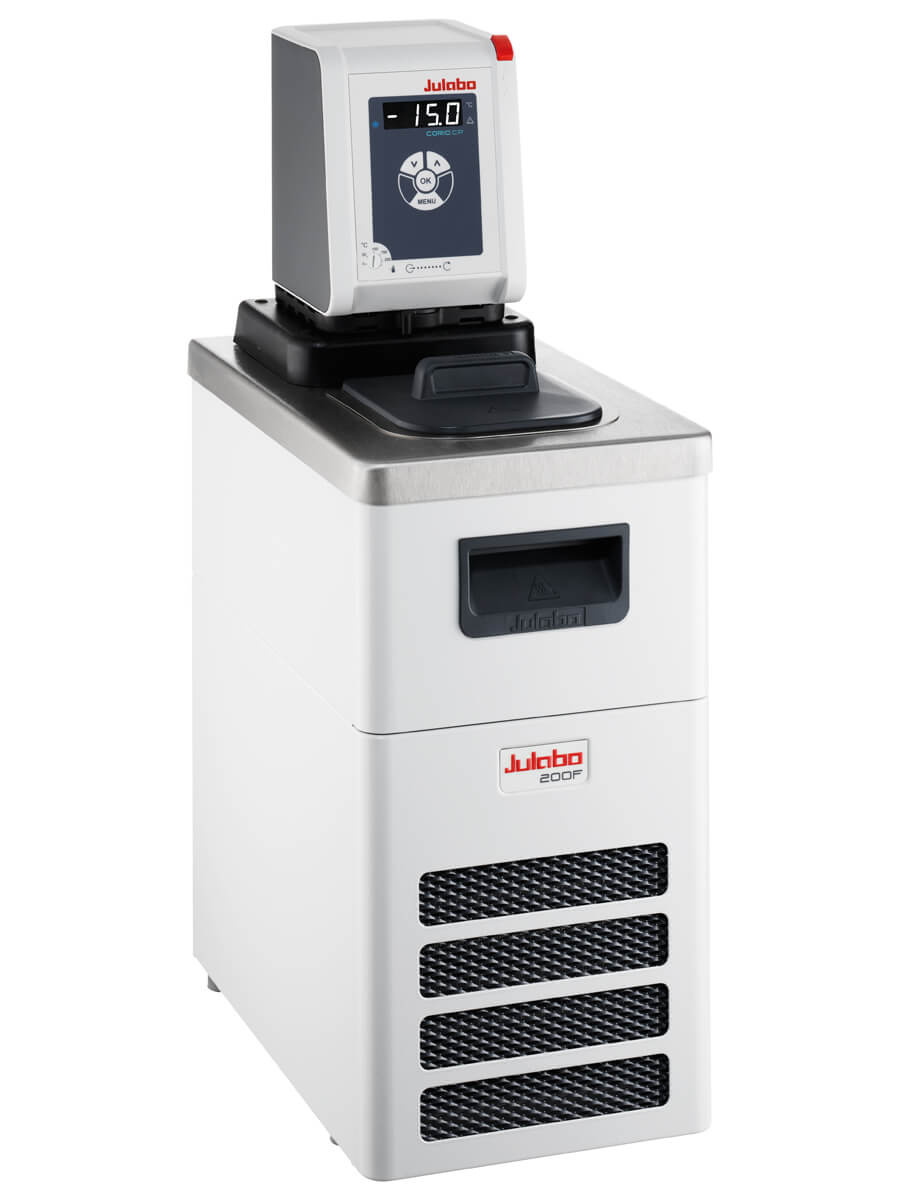

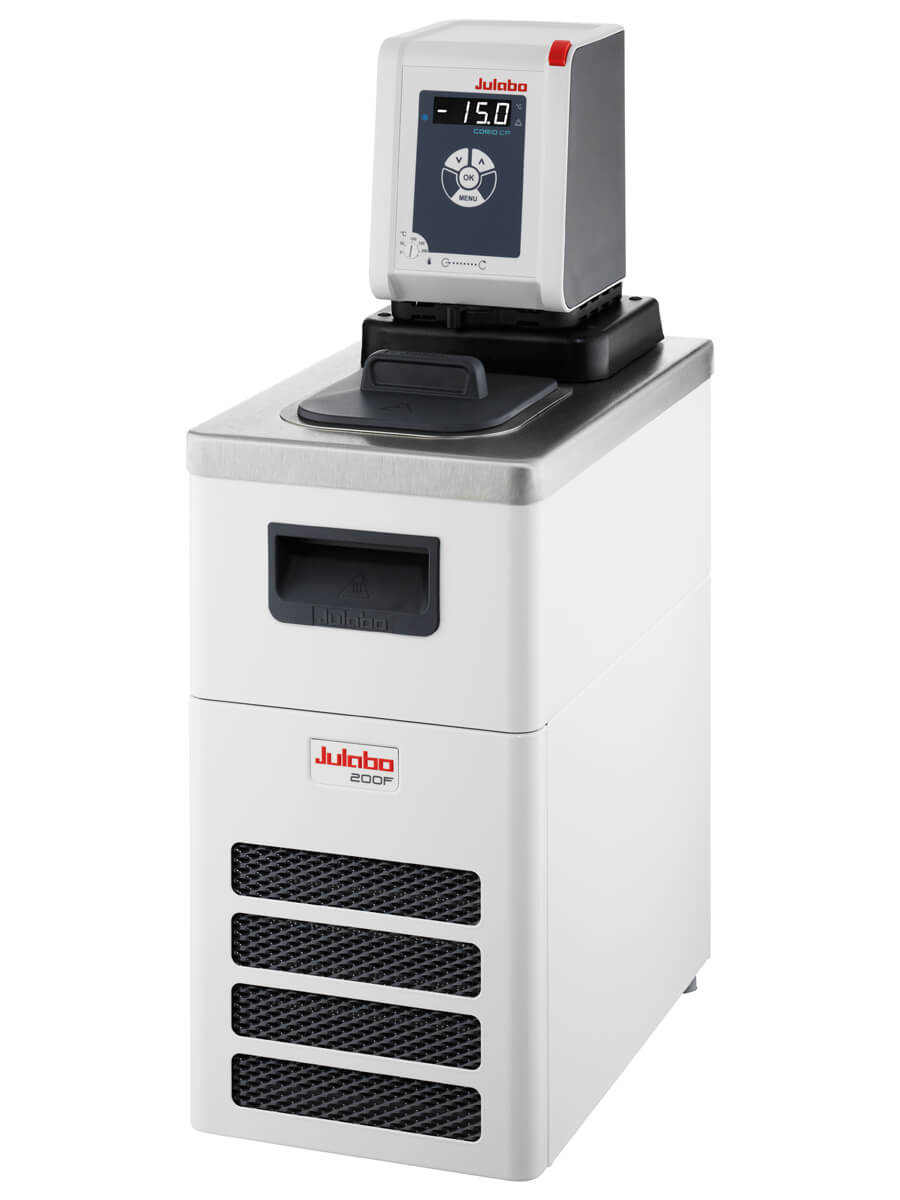

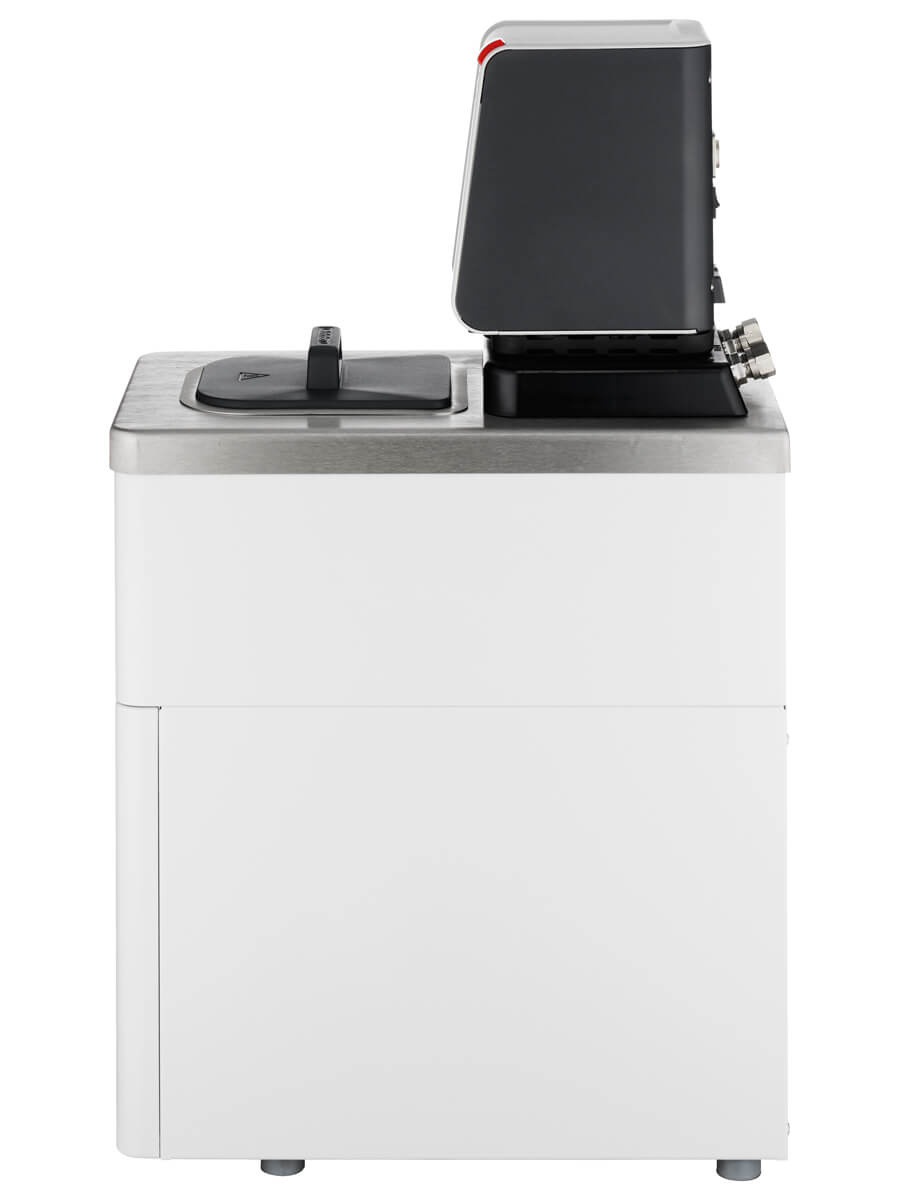

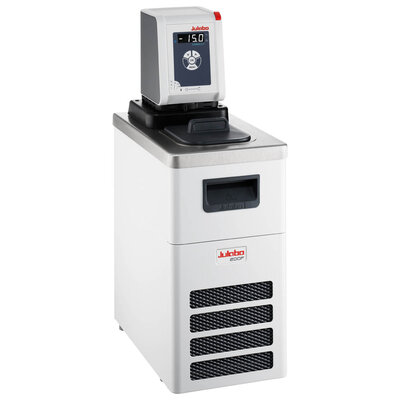

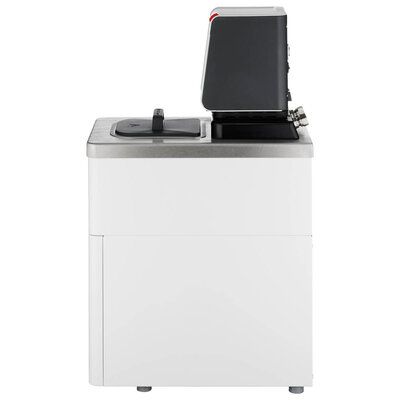

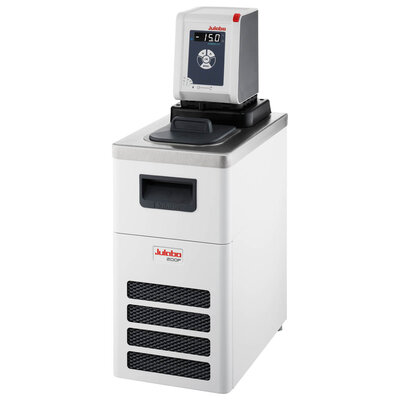

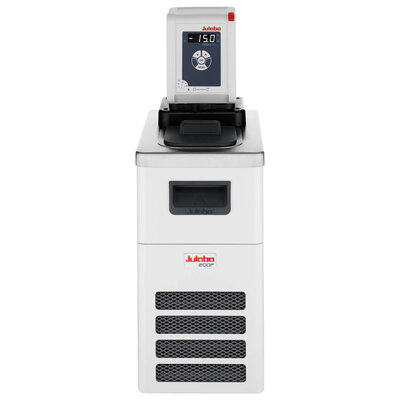

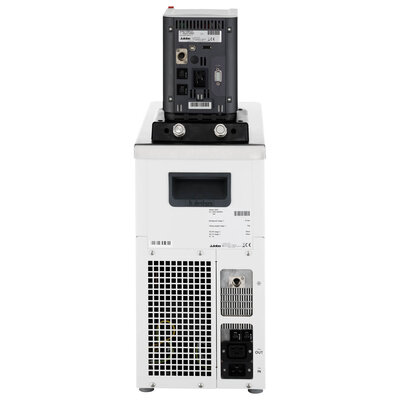

Julabo CORIO CP-200F

Delivery time: 1-2 weeks

$7,651.00 USD Excl. tax
$7,651.00 USD Incl. tax
Information

CORIO™ CP refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. Refrigeration combinations offer low temperatures between -20 °C to -50 °C with an upper limit of 200°C. The CORIO™ CP circulator incorporates easy change-over for control of fluid circulation internally or externally. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs.

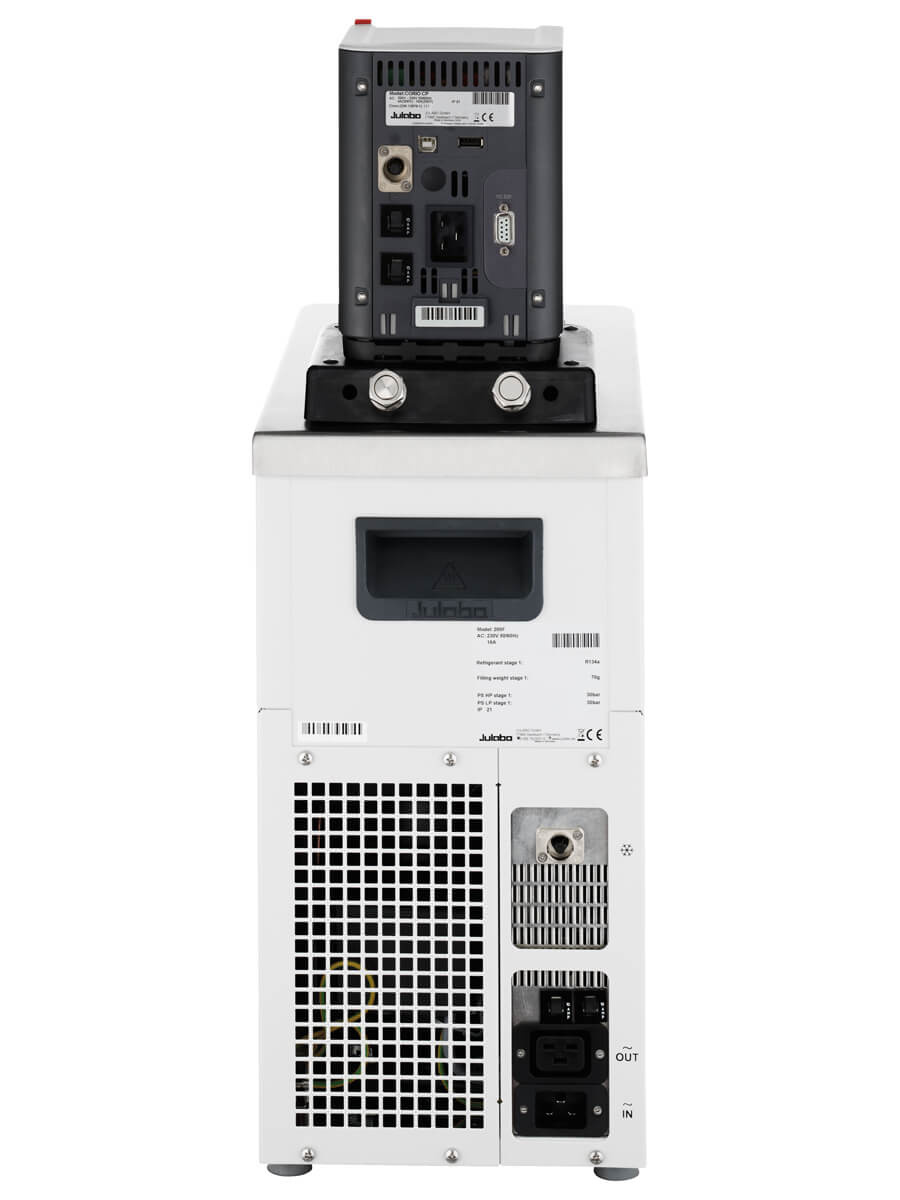

USB and RS232 connections for external PC control and data-logging. A space-saving cooling coil design yields more usable space in the bath tank. Bath lid and drain tap included.
PID temperature control provides ±0.03 °C stability. Adjustable centrifugal pump capacity of 8…27 L/min with pressures 1.5…10.2 psi.
Stainless steel bath tank. Class III (FL) according to DIN 12876-1

Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)





Part Number 9013701.N1.02 9013701.N1.13
Voltage Version 115V/60Hz 230V/60Hz
Refrigerant R290 R290
Heating & Cooling Both Both
Cooling Capacity -20°C 0.02kW, 0°C 0.15kW, 20°C 0.22kW  -20°C 0.02kW, 0°C 0.15kW, 20°C 0.22kW
Heating Capacity kW 0.02
Working Temp Range (°C) -20...200 -20...200
PCF Pressure (psi) 1.5...10.2 1.5...10.2
PCF Rate (l/min) 8...27 8...27
Bath Fill Volume 3-4L  3-4L
External Devices Remote Control Remote Control
Power A 14A 12A
Plug Type NEMA 5-15P NEMA 6-20P
Pump Connection M16x1 male M16x1 male
Dimensions W x L x H (in) 9.1x15.4/25.6 9.1x15.4/25.6
Weight (lbs) 57.3 57.3
