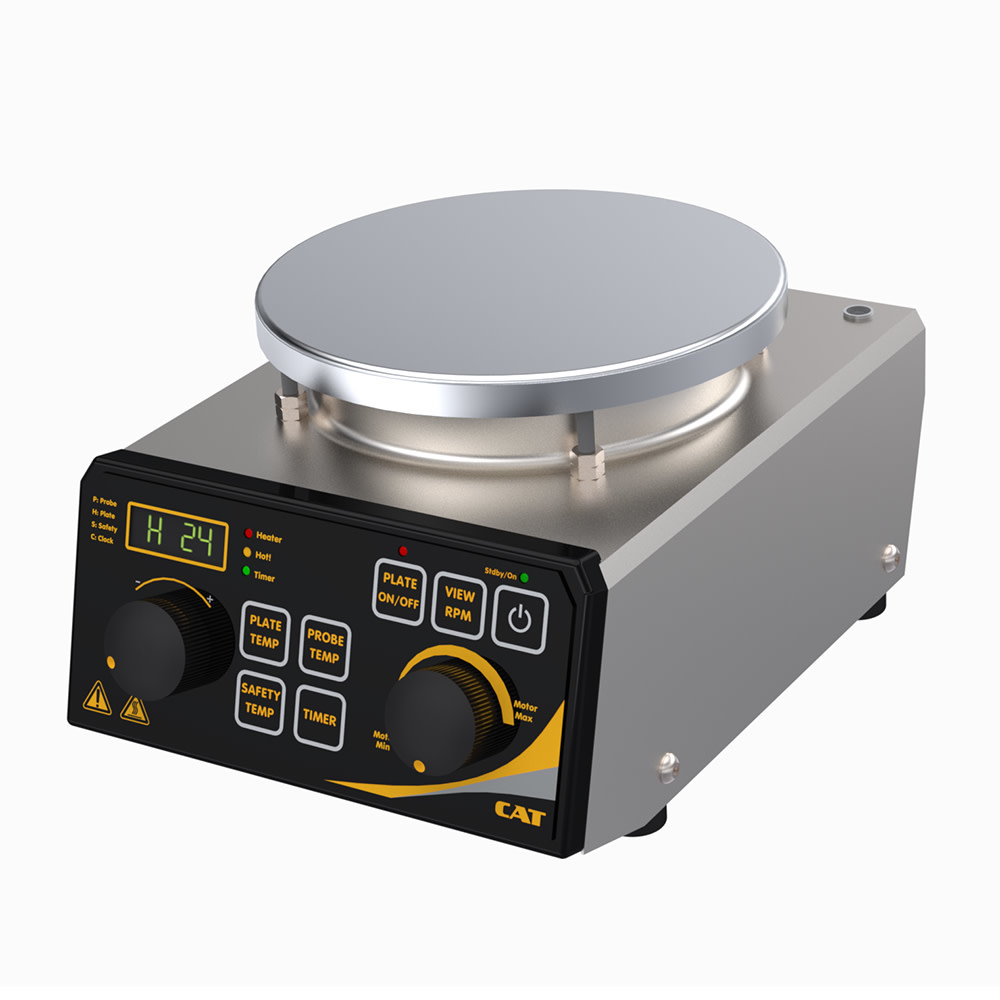

The M 21 hotplate/stirrer in a cost effective design with built in advanced safety and user features. These hotplate stirrers all have superb performance such as soft-start for the stirring motor, PID control of the liquid and hotplate temperatures for fastest heat up time without overshoot and temperature stability, acid resistant epoxy-finished chassis and grade 304 stainless steel covers, combined with
a stainless steel shroud between hotplate and cover to avoid the entrance of spills into the interior. Features a direct display of the set and safety temperatures on the front panel of the instrument. Available with RS485-interface which enables easy setting and readout of all relevant parameters. Both the heating power and stirring speed are adjustable with easy to use knobs.
Currently only available in 230V
- 1 safety circuit
- Safety temperature
- External PT100 connection
- Contact thermometer connection
- Soft start
- Timer function
- RS485 interface (RS232 possible via adapter)
- Resistant stainless steel cover
- Control software available
| Speed range [1 / min] |
60-1600 |
| Temperature range [° C] |
RT (+5) - 350 |
| Heating power [W] |
500 |
| Shape of the heating plate |
round |
| Heating plate type |
stainless steel |
| Suitable for round bottom flasks |
- |
| Suitable for oil or sand bath |
- |
| Dimensions of the heating plate [mm] |
Ø 130 |
| Digital display type |
LED |
| Speed display |
Yes |
| Temperature display |
Yes |
| Timer display |
Yes |
| Timer function |
Yes |
| Ramp function |
- |
| Stirring amount, max. (H2O) [l] |
10 |
| Accuracy of the temperature control [° C] |
- |
Accuracy of temperature control [° C]
(with external sensor) |
± 1 |
| Interfaces for external sensors |
PT100, KTA |
| Programmable safety temperature |
Yes |
| interface |
RS485 |
| Power supply [V] |
230VAC 50Hz, 115VAC 60Hz |
| Weight [kg] |
2.6 |
| Width (mm] |
145 |
| Height [mm] |
110 |
| Depth [mm] |
210 |
| Degree of protection according to DIN EN 60529 |
IP32 |
| Motor type |
DC |
| Motor rotation |
CCW |
| Operating mode |
Endurance run |
| Certification |
CE |
