Benchtop Filter Reactor - Single Jacket

Delivery time: 3-6 weeks

$7,990.00 USD Excl. tax
$7,990.00 USD Incl. tax
Information

Benchtop Filter Reactors

Goldleaf Glass Benchtop Reactor Systems are made with borosilicate glassware and ptfe gaskets for a wide range of chemicals. Made for a user friendly and efficient performance with a sturdy, easy to assemble steel frame and digital mixing controller for precise RPM's.

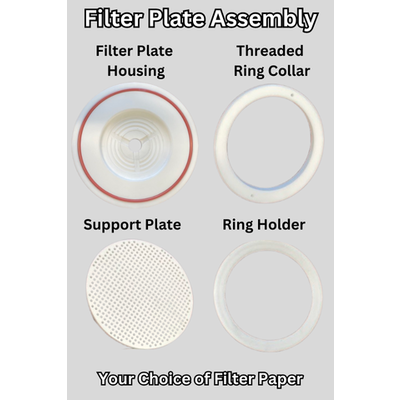

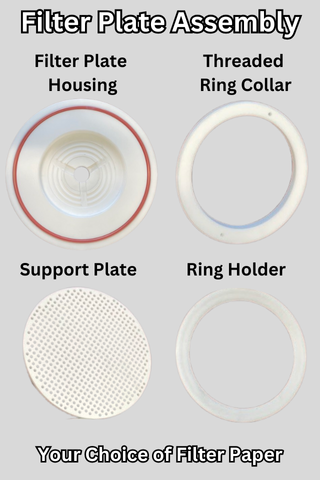

Filter reactors come with a ptfe filter plate to hold filter paper for desired micron size. Choose your type of filter and always have clean sheet for every process. A single jacket Filter Reactor can be used with a recirculating heater or chiller to create a temperature controlled environment. Easily connect to any equipment that fits your needs.





Customization options available; change joint sizes, design condensers, and create manifolds that perfectly fit your facilities equipment.

Our in house, USA based glassblowing studio allows for quick turn around time on custom orders and repairs.

Call us with any customization requests. (510)487-1390











Specs:

  • Sizes available: 500ml - 5 Liter
  • Plate for your choice of filter paper
  • Temperature Range: -90°C to 240°C
  • Single Jacket for Temperature Control
  • Multi-Port Lid
  • Reflux Condenser
  • Feed Funnel
  • Stainless Steel Stand
  • 110-120V 60Hz



Click HERE to Read our Full Guide on Glass Reactors

Click HERE For a Full Guide on Filter Reactors



Items

Details

Glass Materials

High Borosilicate Glass 3.3

Wetted Parts

Glass and PTFE

Reaction Vessel Capacity

500ml, 1000ml, 2000ml, 3000ml, 5000ml

Thermal Jacket

Full Jacket Design

Optional (Ring Baffles within the Thermal Jacket)

Vacuum Jacket

Optional (Triple Layers Glass Vessel)

Filtration Area

78 cm² (500ml, 1000ml)

113 cm² (2000ml)

176 cm² (3000ml, 5000ml)

Filtration Micron

Micron: 0.2μm to 200μm (depends on your materials)

Filtration Materials: PTFE membrane or PTFE fabric or Glass Disc

Note: Not included by default

Stirring Motor

DC Brushless Motor, 50W, 100W, 150W

AC Motor with Gear Reducer: 120W, 250W

Explosion-Proof Motor: 180W, 250W

Stirring Range: 50 ~ 2000 RPM

Realtime Display:  Mixing Speed, Materials Temperature, Torque

Mixing Sealing

Standard PTFE + Ceramic bearing

Condenser

Cooling Coil Condenser

Dropping Feeding Funnel

Dropping Feeding Funnel with PTFE Metering Valve and Equalizing Arm

Glass Lid

5 Openings:

1) Dropping Feeding Funnel

2) Stirrer

3) Temperature Probe

4) Condenser Reflux

5) Reserved (By default: Pressure Release)

Stirring Impeller

PTFE Anchor Type

PTFE Pitched Paddle Type

PTFE Frame Type



Operating Temperature

-90℃   to  +230℃

Operating Pressure

Full Vacuum to Atmospheric Pressure

Operating Jacket Pressure

Up to +0.5 bar (0.05 MPa)



Power Supply

100V ~ 240V, 50Hz/60Hz

*Call or email for availability and additional equipment options (510)487-1390 | [email protected]*
