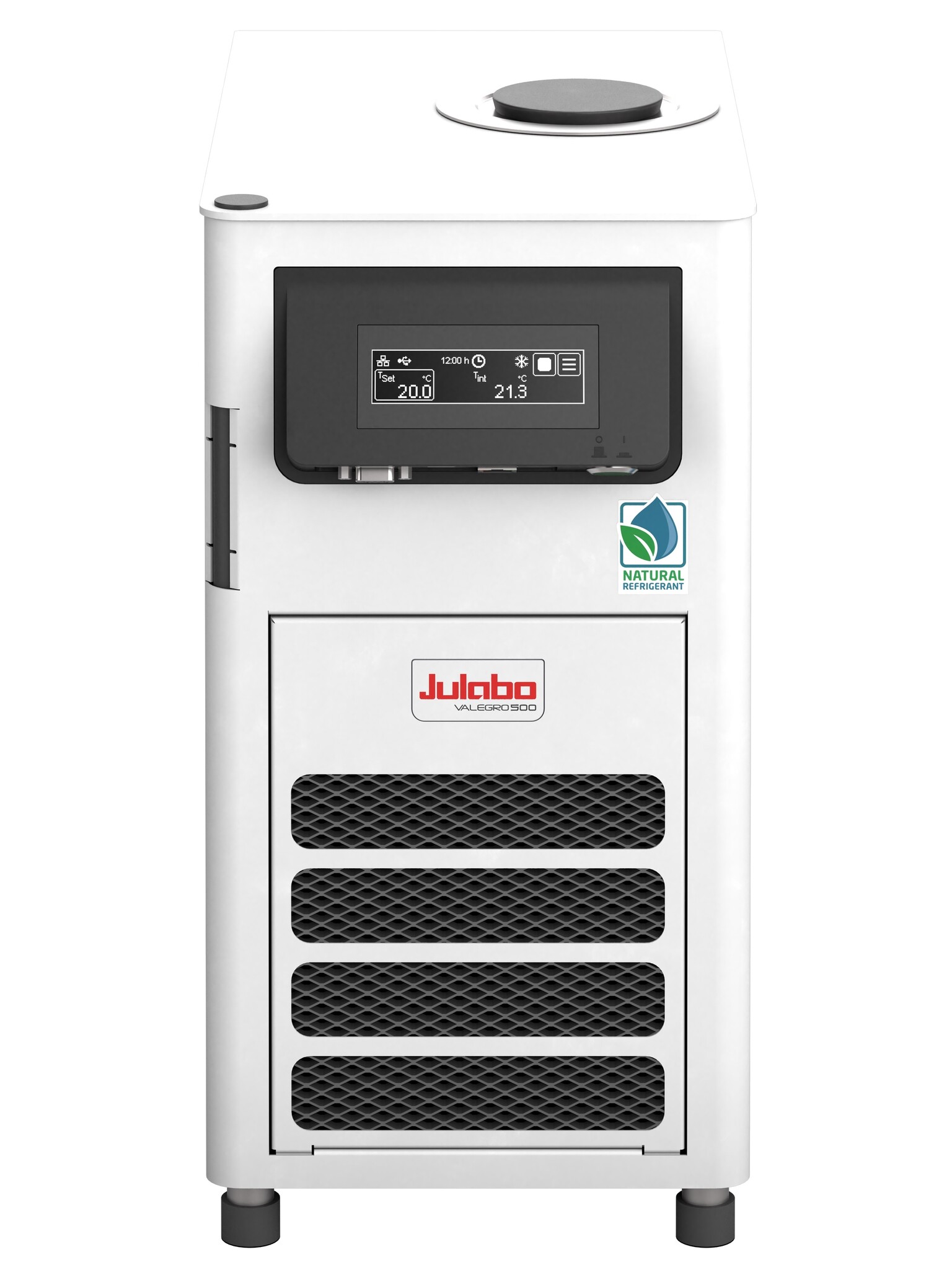

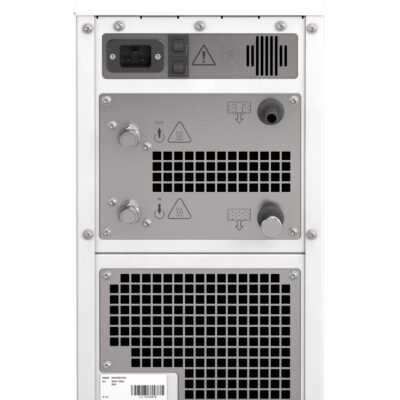

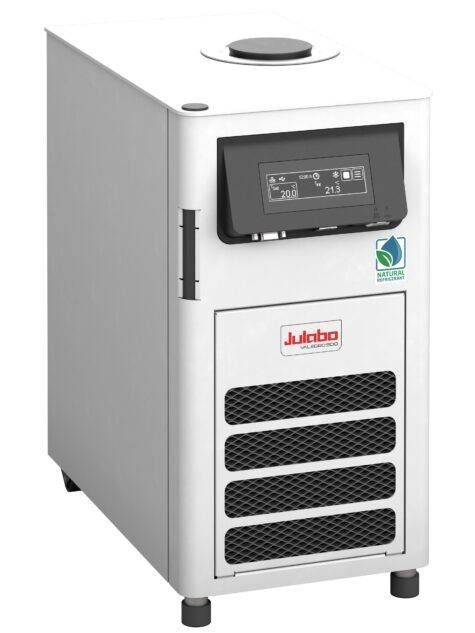

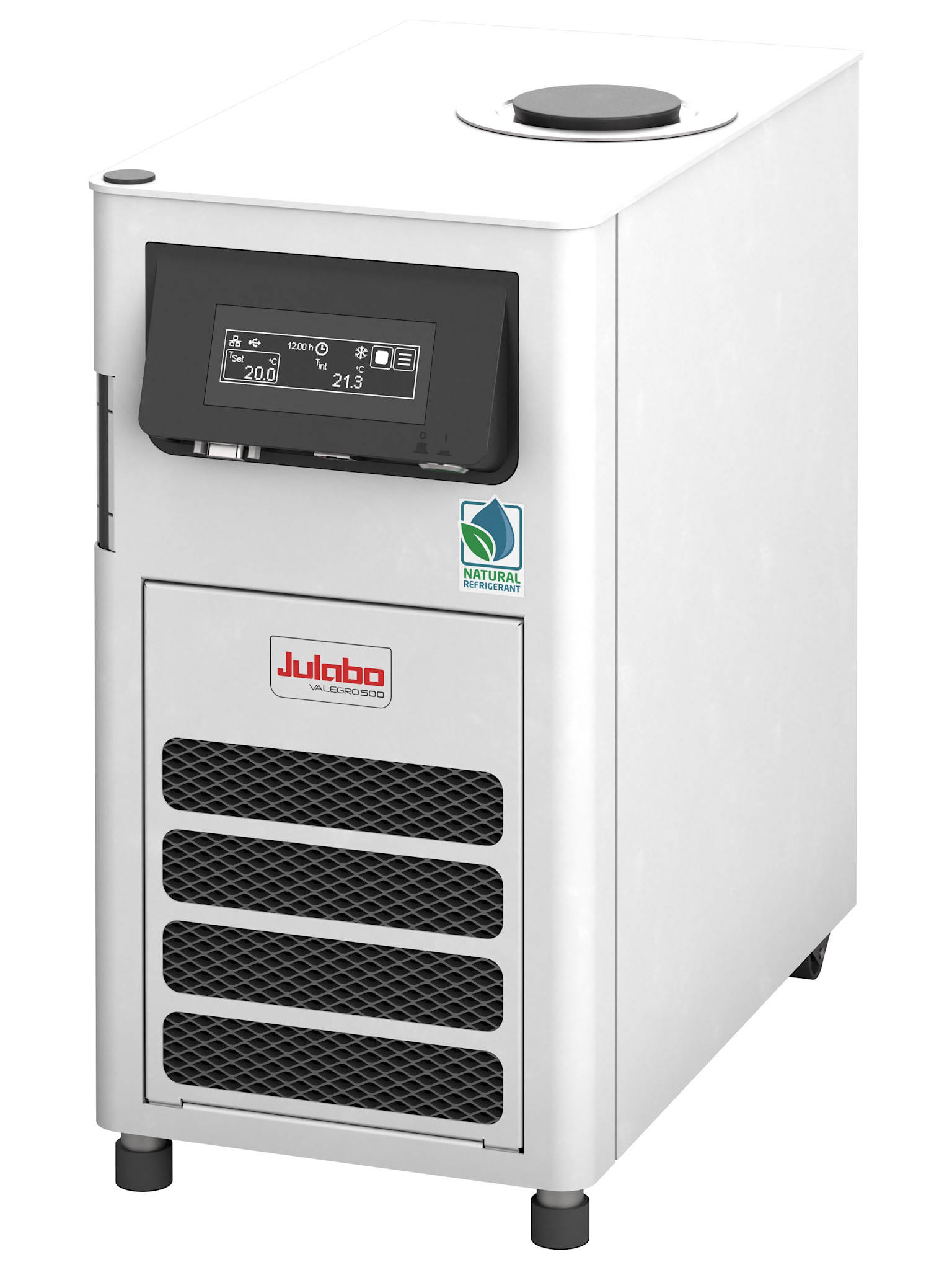

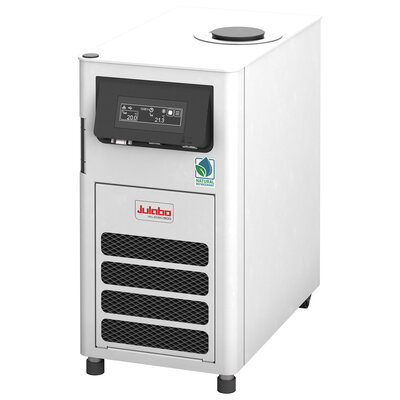

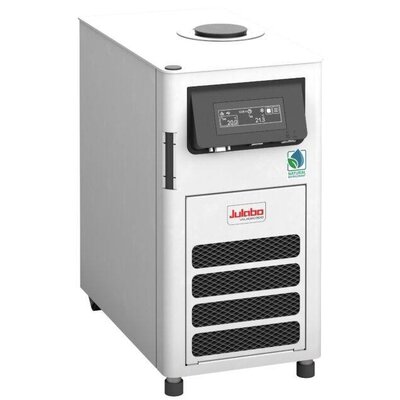

Valegro 500 Chiller
Information
VALEGRO 500 compact recirculating chiller with -20…+40 °C operating range and 500W cooling power at 20 °C. The integrated pump generates a pump pressure up to 12.3 psi and 19 L/min with infinite adjustability to fit your application needs. Cooling via environmentally friendly natural refrigerant. OLED touch screen user interface with intuitive menu operation. Includes RS232 and USB-C interfaces for external communication with an option for Ethernet (part number 30004147). M16x1 male threaded pump connections with 8 and 12 mm hose barbs included.
Key Benefits
- Climate friendly Natural Refrigerant
- OLED touchscreen user interface
- USB-C and RS232 communication ports
- Ethernet option
- Illuminated level indicator
- Adjustable pump to regulate flow / pressure
Included with each unit: 2 each barbed fitting for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
If NRTL/UL CSA is required, contact [email protected]
| Part Number | 9610050.30003283 | 9610050.30003284 |
| Voltage Version | 230V 50/60Hz | 115V 60Hz |
| Working Temp Range (°C) | -20 to 40°C | -20 to 40°C |
| Heating Capacity (kW) | N/A | N/A |
| Cooling Capacity (kW) | ||
| @20°C | 0.5 | 0.5 |
| @0°C | 0.35 | 0.35 |
| @-10°C | 0.24 | 0.24 |
| @-20°C | 0.08 | 0.08 |
| Power (Amps) | 3 | 4 |
| Plug Type | NEMA 6-15P | NEMA 5-15P |
| Pump Connection | M16x1 male | M16x1 male |
| PCF Pressure (psi) | 12.3 | 12.3 |
| PCF Rate (l/min) | 19 | 19 |
| Bath Fill Volume (L) | 1.5-3 | 1.5-3 |
| Fluid Type | Water, Silicone, Water/Glycol | Water, Silicone, Water/Glycol |
| Heating & Cooling | Cooling only | Cooling only |
| Dimensions W x L x H (in) | 9.1 x 17.7 x 17.7 | 9.1 x 17.7 x 17.7 |
| Weight (lbs) | 57.3 | 57.3 |
| Refrigerant | R290 | R290 |
