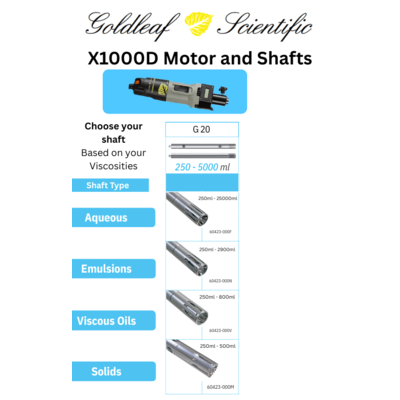

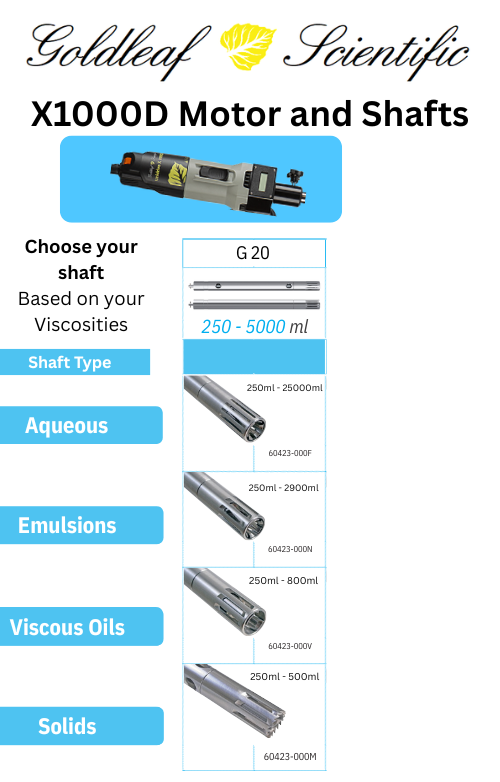

We have put together a complete kit with our universal drive homogenizers and paired with a shaft based on the material and volume you are working with. This makes selection a breeze as you can select one kit and get everything you need including the correct shaft, required tools, complete heavy duty stand setup, and a set of beakers.
Call us if you have any questions about your homogenizer mixer setup (510)487-1390
Viscous - Good for oils such as distillate
Aqueous - Mixes things into beverages and liquids
Emulsions - Used to infuse lotions and balms
Solids - Tissue homogenization and medical applications
Our X1000D includes a digital display which allows you to quantify your processing parameters and makes SOP's easy to train and implement.
All our homogenizers come with a 2-year warranty and we have parts in stock and service capable of repairing and replacing any broken parts quickly. We understand how costly downtime can be so we are committed to offer the fastest turnaround possible.
For help selecting the right homogenizer kit see our selection guide here
For mixing terpenes and distillate see our terpene guide here
The X1000D is designed in accordance with Safety Class 1 and built and tested in accordance with DIN EN 61010. According to these regulations the unit is designed to meet the requirements for safe and correct operations. To maintain the proper safety and operational functions of the instrument the user should follow the instructions and safety guidelines in the manual. Not for hazardous are use, DO NOT USE WITH FLAMMABLE MATERIALS.
Speed range [1 / min] |
4,000-35,000 |
Speed range [1 / min] 115V version |
4,000-35,000 |
Motor power [W] |
1,050 |
Digital display type |
LCD |
Speed display |
Yes |
Volume, max. (H2O) [l] |
2 |
Flow rate (H2O) [L / min] |
- |
Chamber cooling |
- |
Inlet and outlet openings, diameter [mm] |
- |
Cold chamber connections, diameter [mm] |
- |
Noise without tools, max. [dB] |
78 |
Dispersing tools |
T 6, T 10, T 17, T 20, G 20, DK 30 |
Power supply [V] |
230VAC 50Hz 115VAC 60Hz |
Weight [kg] |
2.1 |
Height [mm] |
290 |
Diameter [mm] |
75 |
Degree of protection according to DIN EN 60529 |
IP20 |
Overheating protection |
Yes |
Overload protection |
Yes |
Motor type |
DC |
Direction of rotation agitator shaft |
CCW |
Operating mode |
Short-term operation |
Certification |
CE |
